GPU Passthrough: VFIO, IOMMU, and Thermal Debug

2026-07 · John Rose · john@lineargp.com · code: github.com/jnros

Full build log: passing an NVIDIA RTX 4070 Ti SUPER through to a KVM guest on an AMD host, headless, start to finish. Part 6 describes my first brush with thermal calamity.

Result: The host claims both NVIDIA PCI functions with vfio-pci; the Ubuntu guest sees the physical RTX 4070 Ti SUPER, loads the open NVIDIA driver, and runs CUDA.

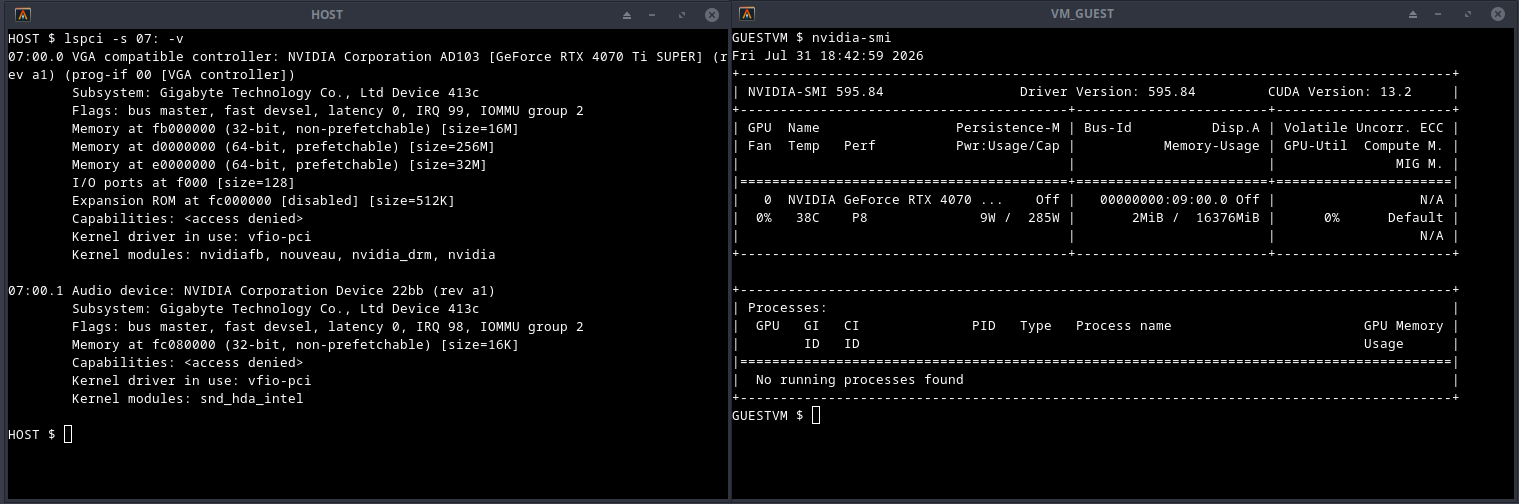

Two terminals side by side. Left, labelled HOST: lspci -s 07: -v shows the NVIDIA AD103 RTX 4070 Ti SUPER at 07:00.0 and its audio function at 07:00.1, both with 'Kernel driver in use: vfio-pci', both in IOMMU group 2. Right, labelled VM_GUEST: nvidia-smi reports driver 595.84, CUDA 13.2, one GeForce RTX 4070 at 09:00.0, 2MiB of 16376MiB used, no running processes. — Both halves of the handoff: host on `vfio-pci`, guest driving the card.

Tested on: AMD (ASUS board), Ubuntu Server 24.04 host (kernel 6.8.0-134), Ubuntu Server 24.04 guest (kernel 6.8.0-136), NVIDIA [RTX 4070 Ti SUPER], driver 595.84.

0. Before you start

Two checks that will save you a weekend:

IOMMU groups. The GPU must sit in a group you can hand over whole. Check this before buying hardware.
RMRR reservations. If firmware has reserved a memory region covering the GPU, DMA mappings will never succeed and no amount of config will fix it. Watch for DMAR and RMRR in dmesg. Consumer laptops are especially prone to this.

General guidance: AMD boards are friendlier than Intel for this. Older GPUs are friendlier than new ones. And disable the GUI on the host. Better yet, don't even install NVIDIA drivers on the host.

1. BIOS

SVM Mode — enable. IOMMU / AMD-Vi — set to enable, not auto. CSM — enable.

2. Host: enable IOMMU

Add kernel boot arguments in GRUB:

amd_iommu=on iommu=pt

Update grub, reboot, verify:

sudo dmesg | grep -i -E "iommu|dmar"
ls /sys/kernel/iommu_groups

If /sys/kernel/iommu_groups is populated, IOMMU is live.

3. Host: identify the device and its group

Walk the sysfs tree to map groups to devices. The GPU must be isolated in its group — a group containing the GPU plus a NIC or system-level device cannot be passed through.

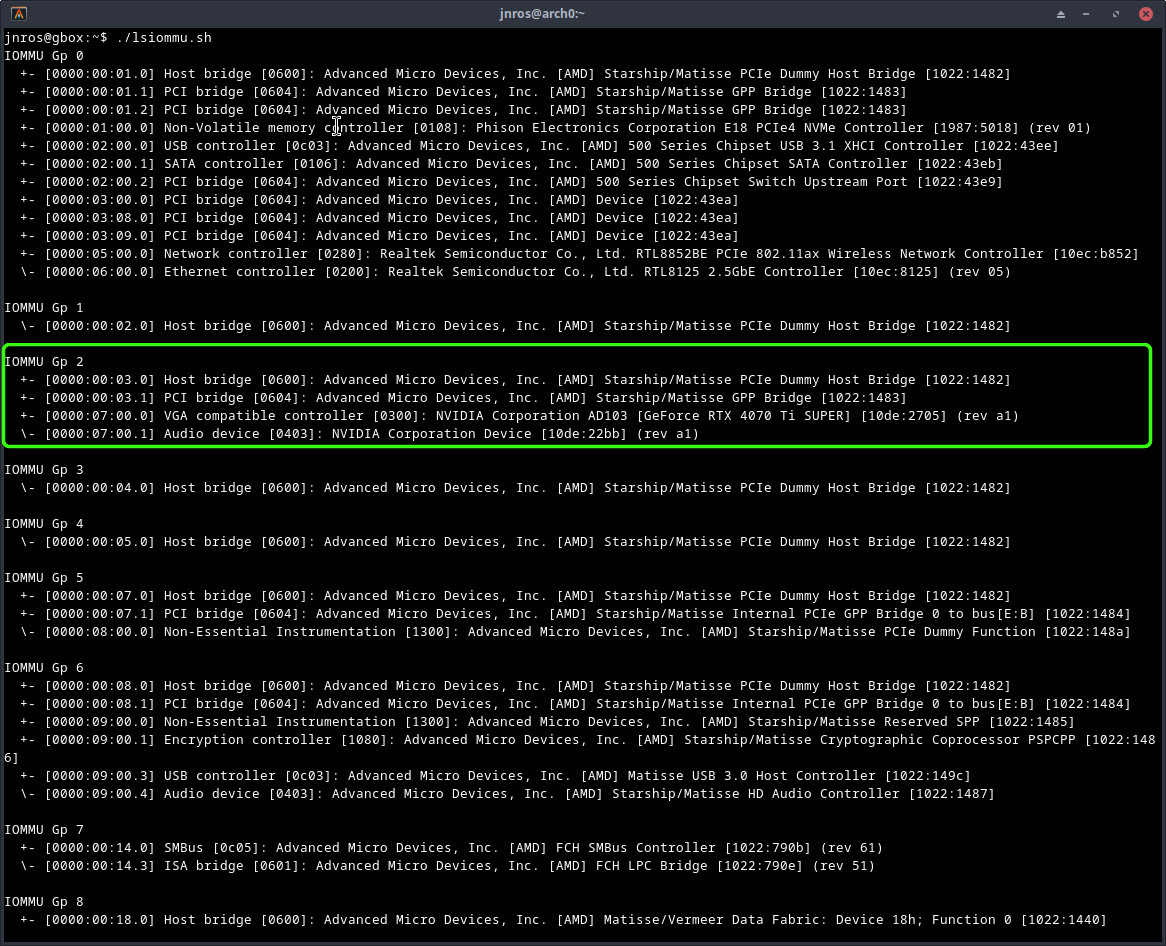

Terminal output of a script walking /sys/kernel/iommu_groups, listing devices per IOMMU group. Group 2 is outlined in green: it contains only the NVIDIA AD103 VGA controller and its companion audio function, plus two bridges. — IOMMU group 2 (boxed) holds the GPU and its audio function, nothing else.

+- [0000:00:03.0] Host bridge [0600]: AMD Starship/Matisse PCIe Dummy Host Bridge [1022:1482]
  +- [0000:00:03.1] PCI bridge [0604]: AMD Starship/Matisse GPP Bridge [1022:1483]
  +- [0000:07:00.0] VGA compatible controller [0300]: NVIDIA AD103 [GeForce RTX 4070 Ti SUPER] [10de:2705] (rev a1)
  \- [0000:07:00.1] Audio device [0403]: NVIDIA Device [10de:22bb] (rev a1)

Two NVIDIA functions (VGA + companion audio) = one card, and both must be passed. The host bridge and PCI bridge entries can be safely ignored. Record the vendor:device hex pairs — here 10de:2705 and 10de:22bb. VFIO needs them.

4. Host: drop to text mode

sudo systemctl set-default multi-user.target
sudo reboot

To restore the GUI later: sudo systemctl set-default graphical.target.

5. Host: bind vfio-pci

/etc/modprobe.d/vfio.conf:

options vfio-pci ids=10de:2705,10de:22bb

/etc/modprobe.d/blacklist-nouveau.conf:

blacklist nouveau
options nouveau modeset=0

/etc/initramfs-tools/modules — append:

vfio
vfio_iommu_type1
vfio_pci
vfio_virqfd

Rebuild and reboot:

sudo update-initramfs -u -k all
sudo reboot

If your console is a monitor attached to that GPU, the display will go dark partway through boot. This is expected. Last visible line is typically VFIO - User Level meta-driver version: 0.3. Reconnect over SSH and verify:

$ lspci -k -s 07:00.0
07:00.0 VGA compatible controller: NVIDIA AD103 [GeForce RTX 4070 Ti SUPER] (rev a1)
        Subsystem: Gigabyte Technology Co., Ltd Device 413c
        Kernel driver in use: vfio-pci

Kernel driver in use: vfio-pci is the goal state.

6. Host: the thermal bug

Symptom. Immediately after enabling VFIO: fan much louder, CPU ~74 °C at idle. Nothing in dmesg or journalctl.

Ruled out. Cooler mounting (BIOS temps stable). Governor / frequency scaling. Interrupt storm. CPU stuck at boost.

Clue. systemd-udevd conspicuously busy on an idle headless server; kworker threads waking constantly.

Smoking gun.

$ sudo udevadm monitor --kernel --udev
add    nvidia
remove nvidia
add    nvidia
remove nvidia
...

~10 times per second, indefinitely.

Proof. sudo udevadm control --stop-exec-queue → CPU 74 °C to 35–45 °C instantly. Fan quiet.

Cause. VFIO binding was correct throughout. Leftover Ubuntu/NVIDIA desktop automation was repeatedly attempting to initialize a GPU that VFIO had already claimed.

Fix.

sudo ln -sf /dev/null /etc/udev/rules.d/71-nvidia.rules
sudo systemctl mask --now nvidia-persistenced.service
sudo systemctl mask --now gpu-manager.service

sudo tee /etc/modprobe.d/vfio-blacklist-nvidia.conf >/dev/null <<'EOF'
blacklist nvidia
blacklist nvidia_drm
blacklist nvidia_modeset
blacklist nvidia_uvm
blacklist nvidia_peermem
blacklist nouveau
blacklist nvidiafb
EOF

sudo update-initramfs -u
sudo udevadm control --reload-rules
sudo udevadm control --start-exec-queue

Confirm with udevadm monitor — it should stay silent.

7. Host: KVM and libvirt

sudo apt install \
    qemu-kvm \
    libvirt-daemon-system \
    libvirt-clients \
    virtinst \
    bridge-utils \
    ovmf \
    cpu-checker

kvm-ok
sudo systemctl enable --now libvirtd

sudo usermod -aG libvirt $USER
sudo usermod -aG kvm $USER

Log out, log back in, then verify with virsh list --all. An empty table (rather than a permissions error) is success.

8. Guest: headless install over serial

sudo virt-install \
  --name labvm \
  --memory 8192 \
  --vcpus 4 \
  --disk size=20,bus=virtio,format=qcow2 \
  --location "/home/jnros/iso/ubuntu-24.04.4-live-server-amd64.iso,kernel=casper/vmlinuz,initrd=casper/initrd" \
  --os-variant ubuntu24.04 \
  --network network=default,model=virtio \
  --boot uefi \
  --graphics none \
  --console pty,target_type=serial \
  --extra-args "console=tty0 console=ttyS0,115200n8"

When the terminal fills with kernel boot messages, the install is running. Minimal install + OpenSSH is sufficient.

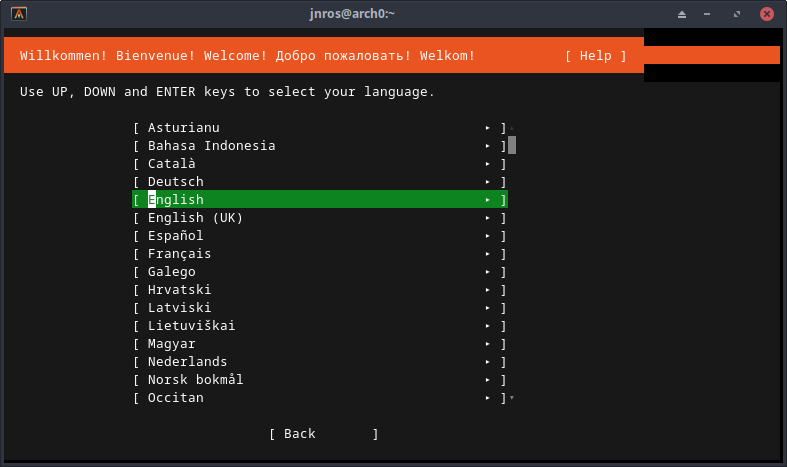

Ubuntu Server installer welcome screen rendered over a serial console inside the KVM guest. — The Ubuntu Server installer, over serial, with no graphics device at all.

Post-install, inside the guest:

ip a
ping -c3 google.com
sudo apt install qemu-guest-agent
sudo systemctl enable --now qemu-guest-agent

Confirm you can SSH to the guest from the host before continuing.

9. Guest: attach the GPU

Secure Boot caveat. --boot uefi enables Secure Boot by default, which complicates NVIDIA passthrough. Remove it from the domain XML.

Add both functions as hostdev entries — you pass the group, not the device:

<!-- GPU passthrough -->
<hostdev mode='subsystem' type='pci' managed='yes'>
  <driver name='vfio'/>
  <source>
    <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/>
  </source>
</hostdev>
<hostdev mode='subsystem' type='pci' managed='yes'>
  <driver name='vfio'/>
  <source>
    <address domain='0x0000' bus='0x07' slot='0x00' function='0x1'/>
  </source>
</hostdev>

On boot, the guest kernel arbitrates over a non-emulated card:

[    0.930357] pci 0000:08:01.0: vgaarb: setting as boot VGA device
[    0.933718] pci 0000:09:00.0: vgaarb: bridge control possible
[    0.934690] pci 0000:09:00.0: vgaarb: VGA device added: decodes=io+mem,owns=none,locks=none

Note the address change: 07:00.0 on the host, 09:00.0 in the guest — the guest has its own PCI hierarchy.

10. Guest: NVIDIA driver

Blacklist nouveau inside the guest first:

cat <<EOF | sudo tee /etc/modprobe.d/blacklist-nouveau.conf
blacklist nouveau
options nouveau modeset=0
EOF

sudo update-initramfs -u
sudo reboot

Then:

sudo apt update
sudo ubuntu-drivers devices     # recommended: nvidia-driver-595-open
sudo apt install nvidia-driver-595-open
sudo reboot

Result:

$ nvidia-smi
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 595.84                 Driver Version: 595.84         CUDA Version: 13.2     |
+-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
|=========================================+========================+======================|
|   0  NVIDIA GeForce RTX 4070 ...    Off |   00000000:09:00.0 Off |                  N/A |
|  0%   38C    P8              6W /  285W |       2MiB /  16376MiB |      0%      Default |
+-----------------------------------------+------------------------+----------------------+

And lspci -vv -s 09:00.0 inside the guest reports Kernel driver in use: nvidia, full BARs (16 MB / 256 MB / 32 MB), FLReset+, and AER capability — a real device, not an emulated one.

Note on link speed. Idle output shows LnkSta: Speed 2.5GT/s (downgraded), Width x16 against a 16 GT/s LnkCap. This is a low-power link state on an idle card, not a passthrough defect; it trains up under load.

Troubleshooting quick reference

Symptom	Likely cause
Display goes dark during host boot	Expected once `vfio-pci` claims the GPU. Use SSH. part 5
Host fan loud / high idle temp after VFIO	udev/NVIDIA claim loop. part 6
`Kernel driver in use: nouveau` after reboot	Blacklist not applied, or initramfs not rebuilt.
Kernel hangs on reboot	Fall back to a known-good boot entry; check `dmesg` / `journalctl`.
GPU visible but DMA failures	Check for `RMRR` / `DMAR` reservations — may be unfixable on that hardware. part 0
Guest won't load NVIDIA driver	Secure Boot still enabled in the domain XML. part 9
IOMMU group contains unrelated devices	Platform limitation; try a different slot or board. part 3

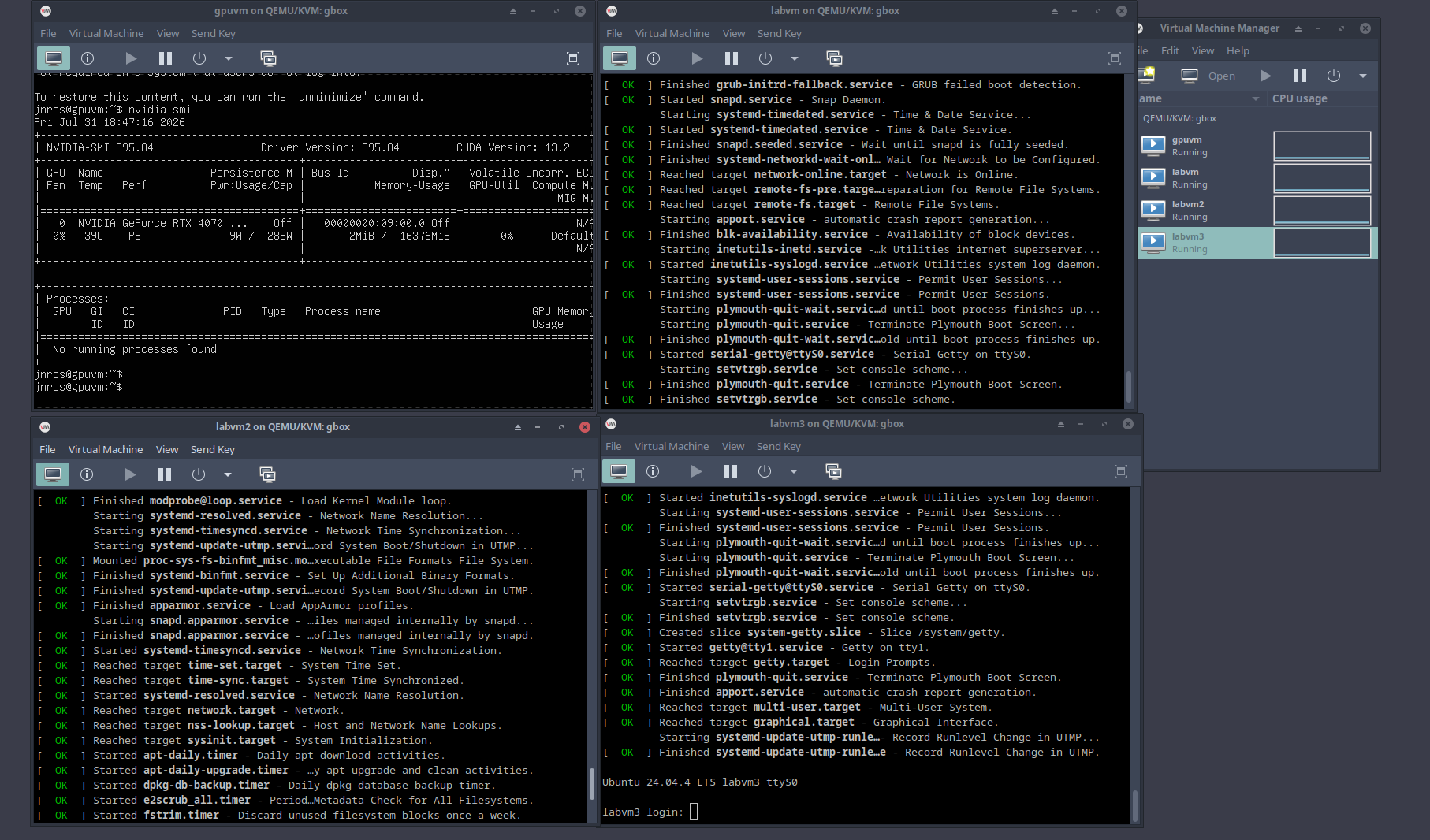

Four QEMU/KVM console windows on one desktop with virt-manager behind them. Top left is gpuvm, logged in, running nvidia-smi: driver 595.84, CUDA 13.2, one GeForce RTX 4070 at 09:00.0, idle. The other three windows are labvm, labvm2 and labvm3 showing ordinary systemd boot logs. virt-manager lists all four as Running. — One box, four virtual servers: gpuvm with the passed-through card, and three other Linux VMs.
